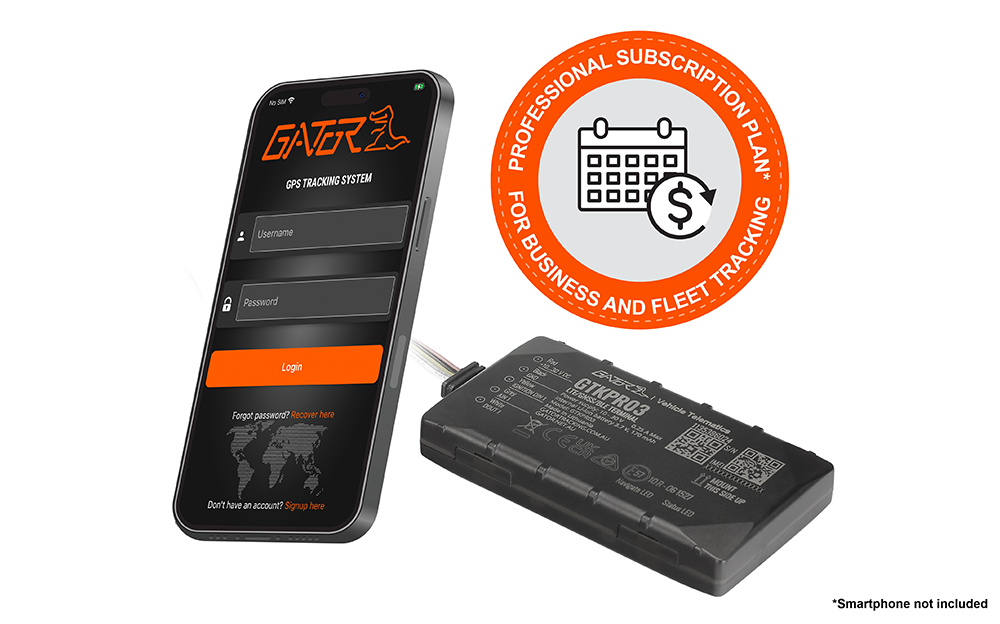

GTKPRO3
The Gator GTKPRO3 is the latest 4G LTE CAT-1 GPS Vehicle Tracking Device that comes supplied with a SIM Card operating on the Telstra 4G M2M Network and 30 Days tracking included. Suitable for fleet management, car rental companies, taxi companies, public transport, logistics companies and personal vehicles, the GTKPRO3 is a feature packed tracking solution that can be connected to any 12 or 24 volt vehicle including cars, utes, vans and trucks.
PORTAL FEATURES
AUSTRALIAN BASED SERVER
VEHICLE TRACKING
TRACKING HISTORY
TRACKING INCLUDED
SMARTPHONE APP
WEBSITE PORTAL
GEO-FENCES
ROUTES
PLACES
FLEET GROUPING
SUB ACCOUNTS
ADVANCED REPORTING
*GTKPRO3 requires subscription to operate and to enable all features, CLICK HERE for more details.
TRACKER FEATURES
NATIONWIDE COVERAGE
M2M SIM CARD INCLUDED
SMART TRACKING
HIGH ACCURACY LOCATION
OFFLINE MEMORY
BEHAVIOUR MONITORING
CRASH DETECTION
TOW AWAY DETECTION
DOOR STATUS DETECTION
IGNITION DISABLE
1 AUX RELAY OUTPUT
12-24V COMPATIBLE
BATTERY BACK UP
*GTKPRO3 requires subscription to operate and to enable all features, CLICK HERE for more details.
4G LTE CAT-1 NATIONWIDE COVERAGE
The GTKPRO3 Vehicle GPS Tracking System is a 4G compatible tracking system. It is a LTE CAT-1 device and operates exclusively on the Telstra Network, providing extensive coverage throughout Australia.
M2M SIM CARD INCLUDED
This GPS tracking system comes supplied with an M2M SIM Card operating on the Telstra 4G LTE Network. Once installed you will receive 30 days free tracking credit and access to the Gator Tracking Portal. The GTKPRO3 Tracking Module and access to the Gator Tracking Portal (via Smartphone APP and Web) require a valid (paid) subscription to the Gator Tracking Service. Ongoing fees and charges apply, CLICK HERE for more details. 3rd Party SIM Cards are not supported on this device.
SMART TRACKING
While your car is on, the system is recording new data, whenever it changes velocity it records new ones, that means if you are travelling steadily, it will reduce it's rate of recording, but when changing direction or speed it will add more and more. Each time the data is recorded, the position of the vehicle on the map will also update.
HIGH ACCURACY
The powerful GPS Chipset inside the GTKPRO3 Tracking module is extremely accurate. With full satellite signal, the location accuracy is within 3M of the tracking device.
OFFLINE MEMORY
As long as the tracker is still receiving GPS signal, it will retain the location data in its memory when data connection is lost which may occur if you drive outside of a 4G area. Once the data connection is re-established, the tracker will upload the journey to the tracking portal as soon as it can, showing where the vehicle travelled during that time. (Please note, full GPS signal is required for accurate data logging during this time).
DRIVER BEHAVIOUR MONITORING
The GTKPRO3 Vehicle GPS Tracker is the perfect solution for Fleet Operators. The GPS tracker has a built in sensor that can detect excessive; braking, acceleration and cornering. When one of these incidents are detected, an event will be recorded.
CRASH DETECTION
The three dimensional accelerometer measures vehicle altitude and g-forces and alerts the server if a major crash is detected.
TOW AWAY DETECTION
The GTKPRO3 can generate an event and send an alert when the vehicle is being towed or lifted while the vehicle ignition is off. So if someone attempts to steal your vehicle, you will receive an alert.
DOOR STATUS DETECTION
Detects a door opening event. This parameter can be combined with other parameters to create meaningful alerts such as a combination of a door open and the engine still running.
IGNITION DISABLE
During installation an immobilisation circuit can be connected to the ignition in the vehicle. This enables remote ignition cut off when the vehicle is not in motion (i.e. parked) via the tracking portal.
1 AUX RELAY OUTPUT
1 Digital Out circuit can be configured to activate selected electrical systems within the vehicle. For example the horn or head lights could be turned on remotely.
12-24V COMPATIBLE
Cars, trucks, vans, utes, motorcycles and more, this GPS tracking system is 9-30V compatible, making it the perfect solution for virtually any vehicle. Installation is simple too, for basic tracking installation only 3 wires need to be connected to the vehicle; constant power, accessory power and earth.
BATTERY BACK UP
The GTKPRO3 Vehicle Tracking System has a built-in 170mAh rechargeable lithium-ion battery so the vehicle can still be monitored for a short period of time even if the vehicles battery has been disconnected or goes flat. The battery needs to be connected during installation (see manual for details), and simply charges while the vehicle is driving.
TECHNICAL
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS (CONFIGURED FOR GPS AND GLONASS ONLY) |
| RECEIVER | TRACKING: UP TO 33 SATELLITES |
| TRACKING SENSITIVITY | -165 dBM |
| ACCURACY | < 3M (ACCURACY DEPENDS ON PDOP METRICS (SATELLITE QTY AND SPREAD) |
| HOT START | < 1 s |
| WARM START | < 25 s |
| COLD START | < 35 s |
CELLULAR
| TECHNOLOGY | LTE CAT-1/NB-IoT/GSM (CONFIGURED FOR 4G CAT-1, TELSTRA NETWORK ONLY) |
| 4G BANDS | LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28 LTE TDD: B39 (Configured to focus only on Telstra 4G CAT-1 bands only) |
| DATA TRANSFER | LTE: MAX. 375KBPS (DL)/MAX. 375KBPS (UL) |
| GPRS | MAX. 85.6KBPS (DL)/MAX. 85.6KBPS (UL) |
| DATA SUPPORT | SMS (TEXT/DATA) SMS LIMITED TO ADMINISTRATION ONLY |
| SIM SUPPLIED | M2M SIM CARD. REQUIRES SUBSCRIPTION TO WORK BEYOND 30 DAYS FROM ACTIVATION |
| INPUT VOLTAGE RANGE | 10V - 35V DC (10 - 30 V DC WITH OVERVOLTAGE PROTECTION) |
| BACK-UP BATTERY | 170 MAH Li-ION BATTERY 3.7 V (0.63 WH) |
INTERFACE:
| DIGITAL OUTPUTS | 1 |
| GNSS ANTENNA | INTERNAL HIGH GAIN |
| CELLULAR ANTENNA | INTERNAL HIGH GAIN |
| USB | 2.0 MICRO-USB (USED FOR CONFIG/DEBUG ONLY) |
| LED INDICATION | 2 STATUS LED LIGHTS |
| SIM | MICRO SIM |
| MEMORY | 128MB INTERNAL FLASH MEMORY (CAPABLE OF STORING TRACKING DATA WHEN DATA LINK IS SEVERED TEMPORARILY FROM SERVER) |
PHYSICAL
| DIMENSIONS | 79 x 43 x 12mm (L x W x H) |
| WEIGHT | 54 G |
OPERATING ENVIRONMENT
| OPERATING TEMPERATURE | -40°C to +85°C (WITHOUT BATTERY) |
| STORAGE TEMPERATURE | -40°C to +85°C (WITHOUT BATTERY) |
| OPERATING HUMIDITY | 5% TO 95% NON-CONDENSING |
| INGRESS PROTECTION RATING | IP54 |
| BATTERY CHARGE TEMPERATURE | 0°C TO +45°C |
| BATTERY DISCHARGE TEMPERATURE | -20°C TO +60°C |
| BATTERY STORAGE TEMPERATURE | -20°C TO +35°C (1 MONTH) / -20°C TO +30°C (6 MONTHS) |
INCLUSIONS
TRACKING MODULE
SIM CARD
PRODUCT MANUAL
HOW TO SUBSCRIBE
INTRODUCTION TO TRACKING WEB PORTAL
AUSTRALIAN BASED SERVER - SAFE, SECURE, PROTECTED
You can feel safe knowing that Gator Trackers use an Australian Based Server, ensuring your sensitive information is securely stored right here in Australia! Many GPS tracking companies store tracking data and user details on insecure and unreliable servers in overseas countries. Some of these countries have less stringent data protection laws and data breaches are common. Tracking and sensitive personal information is often accessed by unauthorised personnel and hackers, placing users at risk of identity theft and other criminal activity.
UNLIMITED VEHICLE TRACKING
From a single log in, you can track as many GTKPRO3 Tracking Devices as you want. We have no limitations so whether you are an individual tracking your personal vehicle or a large fleet operator tracking vehicles all over Australia, you can easily monitor them all in one place. Feature is available once subscribed, CLICK HERE for more details about subscription.
14 MONTHS TRACKING HISTORY
We will store up to 14 months of tracking history for you to access at any time. This will give you plenty of time at the end of the financial year to generate any reports required for documenting where your vehicle has travelled throughout the year. Feature is available once subscribed, CLICK HERE for more details about subscription.
30 DAYS INCLUDED TRACKING
Your tracker will work instantly upon installation with the included SIM Card without any sign up for up to 30 days. After the 30 days, subscription is required to continue using the Gator Tracking Service and GTKPRO3 Tracking Device. Ongoing fees and charges apply, CLICK HERE for more details. M2M SIM card included, operating on the Telstra 4G M2M CAT-1 network.
SMARTPHONE APP
The Free Gator Tracking Smartphone App can be used on iOS and Android Smartphones. It allows you to track the vehicle, turn triggers on/off, receive alerts, create basic geo-fences and navigate to the vehicle. The App is easy to use and allows you to track your vehicle from anywhere around the world 24/7.
WEBSITE PORTAL
The Gator GPS Tracking Portal online web-based software can be accessed 24/7 from any location across the globe and from any device that has internet access including desktops, laptops, smartphones and tablets. With two selectable interfaces, simple and advanced, the Gator GPS Tracking Portal is suitable for every user.
GEO-FENCES
Virtual boundaries on the map can be set up to identify important locations, such as a job site, home or office. Every time the GPS tracker enters or exit these locations an alert will be sent. Geo-Fence Zones are very simple to set up and can be any shape or size. The Geo-Fence Zone alerts can be customised to activate on specific days and during specific times.
ROUTES
Want to know if a vehicle deviates from the route? Routes are ideal for vehicles that travel on the same roads on a regular basis. Set predetermined routes for the vehicle to travel on, when the vehicle deviates from the route the GPS tracker will send a notification. Routes can be as short or as long as required and are very simple to set up. The Route alerts can be customised to activate on specific days and during specific times.
PLACES
Pinpoint exact places / locations a vehicle should be. As soon as the GPS tracker arrives or leaves this location a notification will be sent. As with Routes and Geo-Fence Zones, Places are very simple to set up in the Gator GPS Tracking Web Portal and there is no limit to how many locations can be added. The Places alerts can be customised to activate on specific days and during specific times.
FLEET GROUPING
The perfect tool for large fleet operators, create multiple vehicle groups in the portal allowing you to easily divide your fleet and view individual groups on the map.
SUB ACCOUNTS
Create, customise & manage sub accounts, providing separate logins with customised permissions for colleagues or family members.
ADVANCED REPORTING
Generate reports to cover all aspects of vehicle usage including; journey details, engine status, stationary times, geo-fence entry/exit, route deviations, driver behaviour and more.
Available Models
Your new tracking device should already be configured and ready to connect to our server, you only need to install the SIM.
Information
The GTKPRO3 Is already configured to connect to the SIM provided and to our tracking server. No configuration is required, simply insert the SIM card and install into the vehicle.
By the time you've finished installing it (or 20 minutes), the SIM service should have provisioned and activated, then the device is read to be added to your account.
